Description
Main

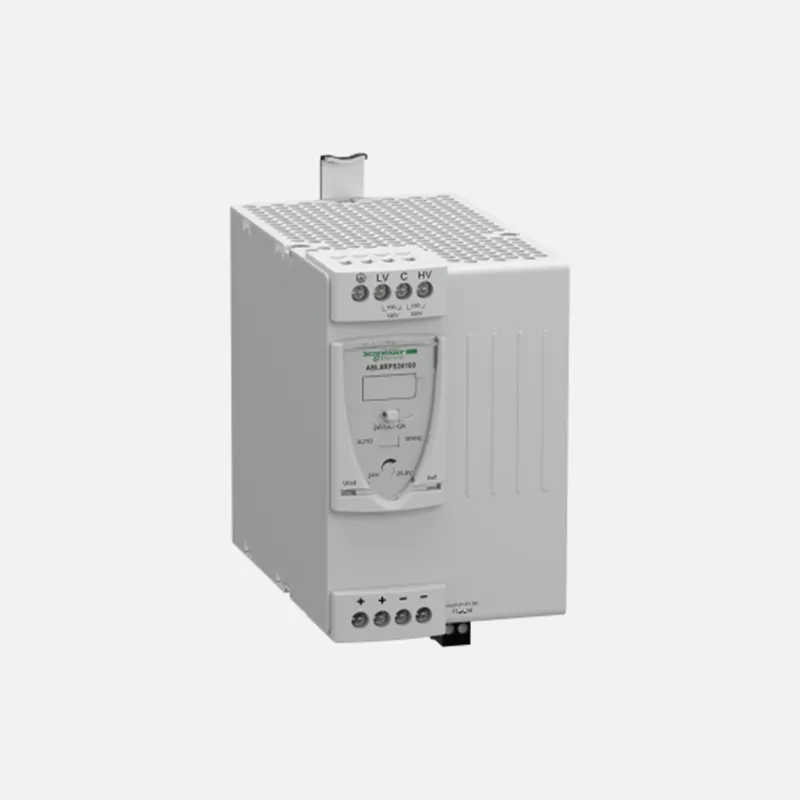

Range of product Modicon Power Supply
Product or component type Power supply
Power supply type Regulated switch mode
Nominal input voltage 100…120 V AC single phase, terminal(s): N-L1
200…500 V AC phase to phase, terminal(s): L1-L2
Rated power in W 240 W
Output voltage 24 V DC
Power supply output current 10 A
Permissible temporary current
boost
1.5 x In (for 4 s)
Anti-harmonic filter Low frequency harmonic currents
Complementary
Input voltage limits 170…550 V AC
85…132 V AC
Inrush current 30 A
Power factor 0.68 at 240 V AC
0.69 at 120 V AC
Efficiency 87 %
Output voltage adjustment 24…28.8 V adjustable
Power dissipation in W 31 W
Provided equipment Power factor correction filter conforming to IEC 61000-3-2
Output protection type Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30…32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V
Thermal, protection technology: automatic reset
Connections – terminals Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Screw type terminals: 3 x 0.5…3 x 4 mm², (AWG 22…AWG 12) for input connection
Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for input ground
connection
Screw type terminals: 4 x 0.5…4 x 4 mm², (AWG 22…AWG 12) for output connection
Screw type terminals: 1 x 0.5…1 x 4 mm², (AWG 22…AWG 12) for output ground
connection
Status LED 1 LED (green and red) output voltage
1 LED (green, red and orange) output current
Depth 145 mm
Height 125 mm
Width 86 mm
Net weight 1 kg
Output coupling Parallel
Series
Marking CE
Mounting support 35 x 7.5 mm symmetrical DIN rail
35 x 15 mm symmetrical DIN rail
Operating position Vertical
Supply SELV conforming to IEC 60950-1
SELV conforming to IEC 60204-1
SELV conforming to IEC 60364-4-41
Dielectric strength 3500 V with between input and ground
4000 V with between input and output
500 V with between output and ground
Environment
Standards UL 508
CSA C22.2 No 60950-1
EN/IEC 62368-1
Product certifications CCSAus
EAC
KC
RCM
UL
Environmental characteristic EMC conforming to IEC 61000-6-1
EMC conforming to IEC 61000-6-3
EMC conforming to EN 55024
EMC conforming to IEC 61000-6-4
EMC conforming to EN/IEC 61204-3
Safety conforming to IEC 60950-1
Safety conforming to EN/IEC 61204-3
Operating altitude 2000 m
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for
operation
50…60 °C with derating factor mounting position A < 2000 m
-25…50 °C without derating mounting position A < 2000 m
