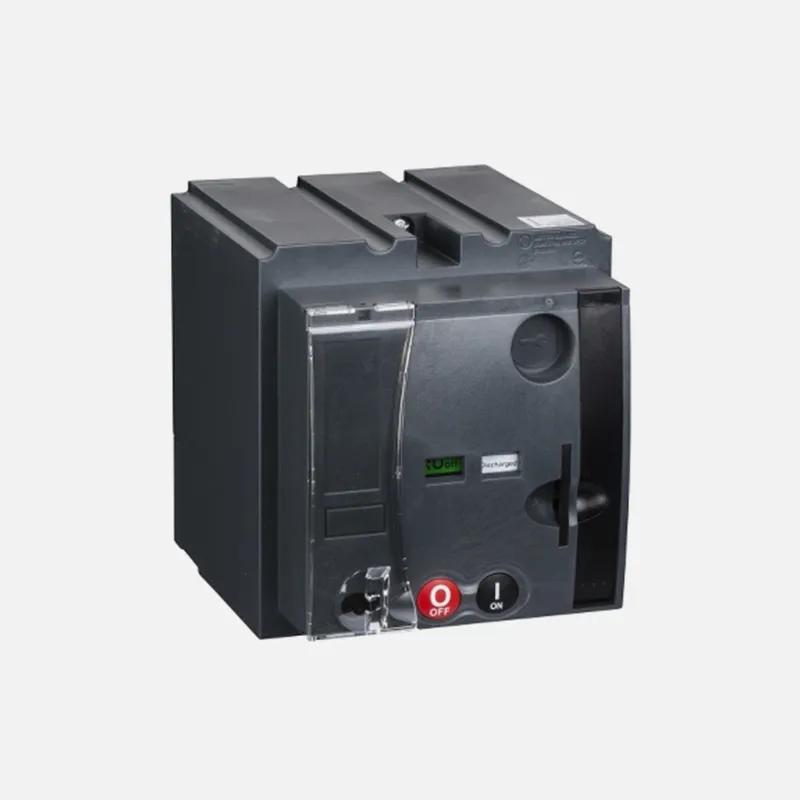

COMPACT MOTOR MECHANISM MT400-630

COMPACT MOTOR MECHANISM MT400-630

R2,898.02

Motor mechanism. MT 400-630. Compact NSX400/630. PowerPact Multistandard L. 220 to 240 VAC 50/60 Hz. 208 to 277 VAC 60 Hz

Pay in 3 or 12. The Clever Way to Pay.
From over 12 months or 3 interest free payments.
Learn more...

Your flexible payment provider.

Example payment for

x 3
0% interest, zero fees.
Pay in 3
x 12
28.25% interest, plus fees.
Total Payment
Pay in 12

How does PayJustNow work?

  • Shop and choose PayJustNow at checkout.
  • Sign up and get instant approval.
  • Pay in 3 or 12.

You can complete sign-up in under 2 minutes - no need to leave your cart!

Out of stock

Categories: , SKU: LV432641 Brand:

Description

Main
Device short name MT400/630
Product or component type Motor mechanism
Device application Automatic spring charging
Range compatibility ComPacT NSX400
ComPacT NSX630
ComPacT NSX400 DC
ComPacT NSX630 DC

Control type Standard
[Uc] control circuit voltage 208…277 V AC 60 Hz
220…240 V AC 50/60 Hz

Mounting mode Fixed
[In] rated current 400 A
630 A

Complementary
Control signal type Impulse
Maintained
Response time < 700 ms open
< 80 ms closed
Maximum operating frequency 4 per minute
Maximum power consumption in VA 500 VA closing
500 VA opening
Locking options description Padlocking in OFF position
1 to 3 padlocks Ø 5 to Ø 8
