Description
Main
Range of product Telemecanique Limit switches XC Standard
Series name Standard format
Product or component
type

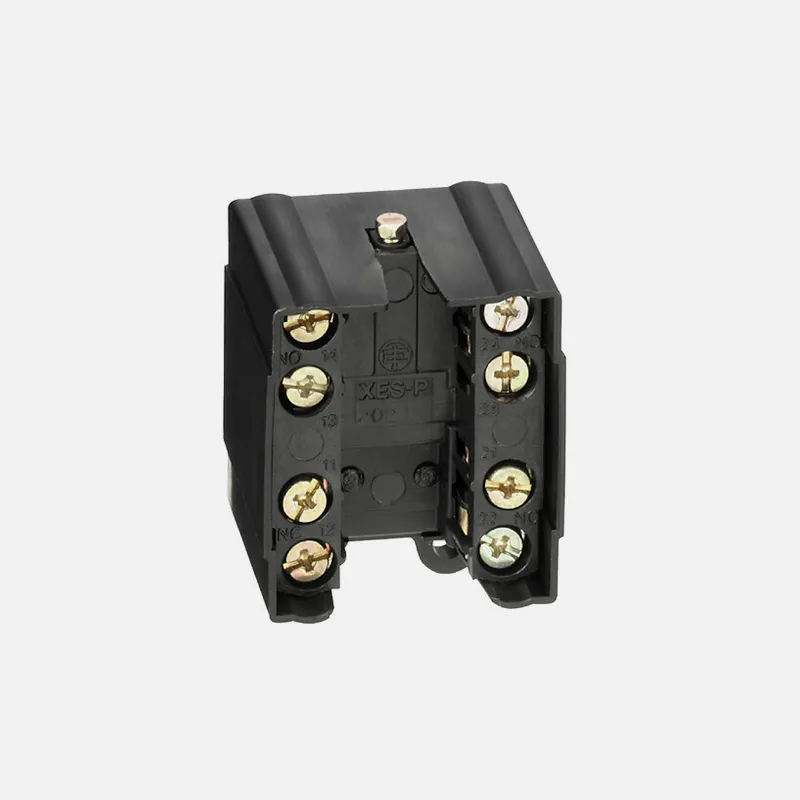

Limit switch contact block
Device short name XESP
Associated body ZCKJ2
Number of poles 2
Contact operation Snap action, simultaneous
Contacts type and
composition
2 C/O
Complementary
Product compatibility XCKJ
Electrical connection Screw-clamp terminals, clamping capacity: 1 x 0.75…2 x 1.5 mm2
Contacts insulation form Za
Contacts material Silver plated contacts
Positive opening Without
Minimum actuation speed 0.01 mm/s
Maximum resistance across terminals 25 mOhm conforming to IEC 60255-7 category 3
Electrical durability 5000000 Cycles, DC-13 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 Cycles, DC-13 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
