Description
Main
Range TeSys

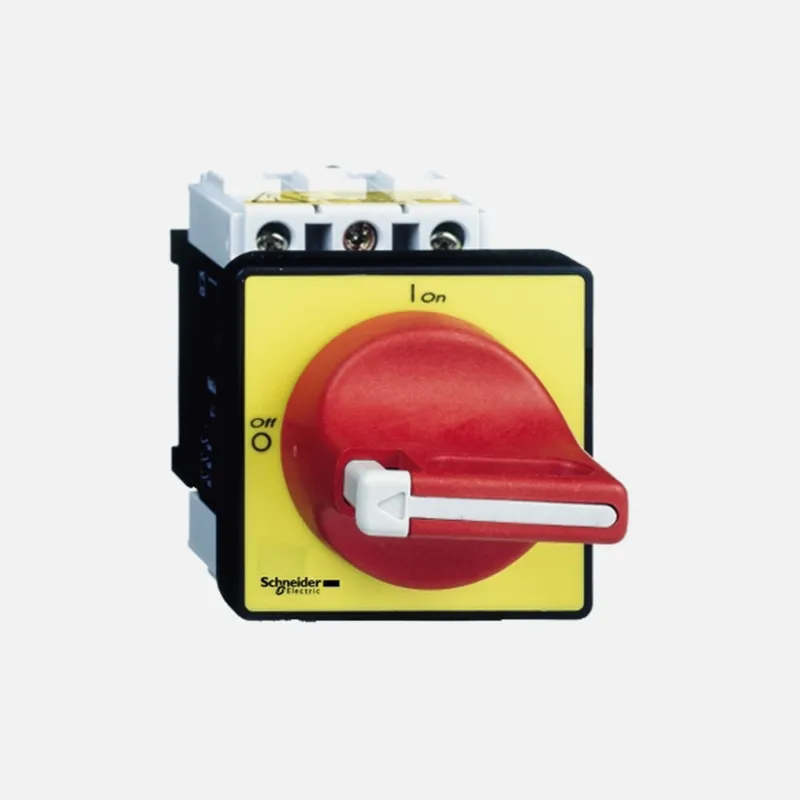

Product Name TeSys VARIO
Device Short Name VCF
Product Type Emergency stop switch disconnector
Complementary
Device Composition Switch
Handle
Mounting Support Handle: door
Switch: door
Mounting Method By 4 screws for handle
Performance Level High performance
Number of Poles 3P
Contact Type and Composition 3 NO
[Ue] IEC Rated Operational
Voltage
690 V AC 50/60 Hz
IEC Rated Operational Power in W 11 kW at 500 V (AC-23A)
15 kW at 690 V (AC-23A)
7.5 kW at 500 V (AC-3)
7.5 kW at 690 V (AC-3)
1.5 kW at 230…240 V (AC-3)
5.5 kW at 230…240 V (AC-23A)
11 kW at 400…415 V (AC-23A)
7.5 kW at 400…415 V (AC-3)
[Ie] Rated Operational Current 21.8 A AC-23 Ue: 400 V
[Ith] Conventional Free Air
Thermal Current
32 A
[Ithe] Conventional Enclosed
Thermal Current
25 A
Making Capacity ( I Rms) 320 A at 400 V AC-21A
320 A at 400 V AC-22A
320 A at 400 V AC-23A
Breaking Capacity 250 A at 400 V (AC-21A)
250 A at 400 V (AC-22A)
250 A at 400 V (AC-23A)
Rated Conditional Short Circuit
Current
10 kA at 400 V – associated fuse 35 A aM
10 kA at 400 V – associated fuse 35 A gG
[Icm] Rated Short Circuit Making
Capacity
1 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand
Current
384 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand
Voltage
8 kV
Suitability for Isolation Yes
Network Type DC
AC
Intermittent Duty Class 30
Control Type Rotary handle
Rotary Handle Mounting Style Direct
Handle Color Red
Handle Front Plate Color Yellow
Rotary Handle Padlocking 1 to 3 padlocks 4…8 mm
Marking 0 – 1
Mechanical Durability 100000 cycles
Electrical Durability 100000 cycles AC-21
30000 cycles DC-1…5
IEC Terminal Connection Power circuit: screw clamp terminals10 mm² – solid
Power circuit: screw clamp terminals6 mm² – flexible – with cable end
Tightening Torque Power circuit: 2.1 N.m – on screw clamp terminals
Base Dimension 60 x 60 mm
Height 74 mm
Width 60 mm
Product Weight 0.25 kg
Environment
Standards IEC 60947-3
Product Certifications UL
CSA
CCC
GL
UKCA
Degree of Protection IP20 conforming to IEC 60529
IP65
Protective Treatment TC
Mechanical Robustness Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6
Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for
Operation
-20…50 °C
Fire Resistance 960 °C conforming to IEC 60695-2-1
Compatibility Code Main switch disconnector
