Description
Main
Range of product Telemecanique Inductive proximity sensors XS
Series name General purpose
Sensor type Inductive proximity sensor
Product specific
application
–

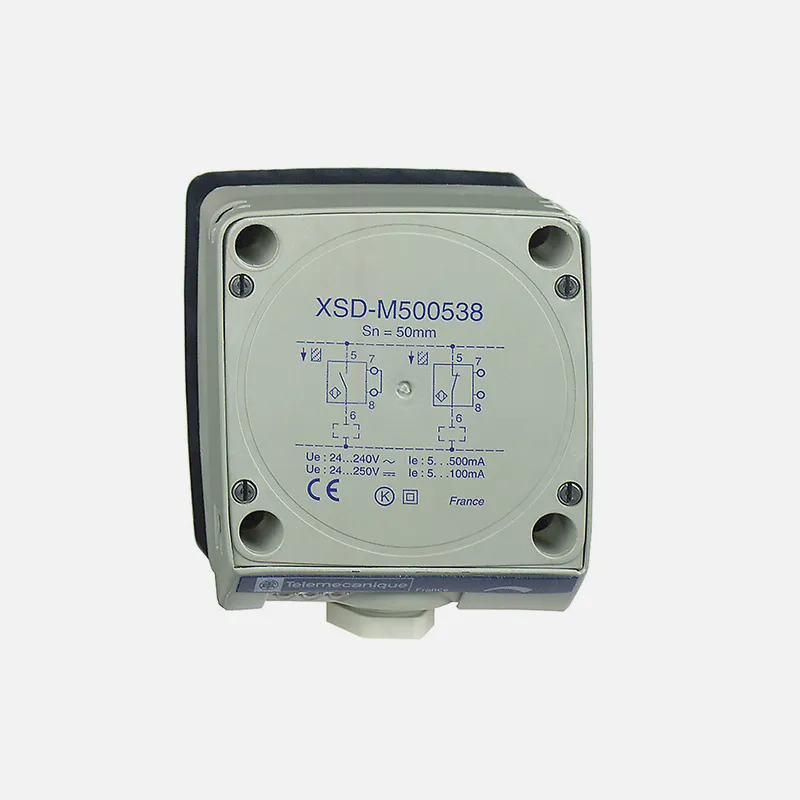

Sensor name XSD
Sensor design Form 80 x 80 x 40
Size 40 mm
Body type Fixed
Enclosure material Plastic
Type of output signal Discrete
Wiring technique 2-wire
[Sn] nominal sensing
distance
60 mm
Discrete output function 1 NO or 1 NC programmable
Electrical connection Screw-clamp terminals
[Us] rated supply
voltage
12…240 V AC
IP degree of protection IP67
Complementary
Detection face 5 positions turret head
Detector flush mounting acceptance Non flush mountable
Material Plastic
Front material Plastic
Output circuit type AC
Cable entry 1 entry tapped for Pg 13.5 cable gland
Switching frequency <= 10 Hz
Depth 40 mm
Height 100 mm
Width 80 mm
Net weight 0.48 kg
Environment
Product certifications CCC
Ambient air temperature for operation -25…70 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
